Home >> Products  >> Hybrid stepper motor  >> NEMA17 (42mm) Stepper motor
Hybrid stepper motor

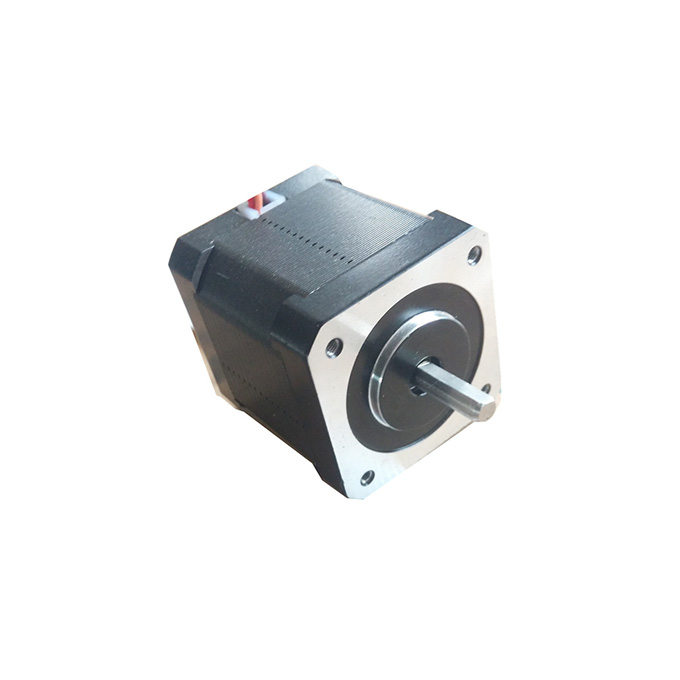

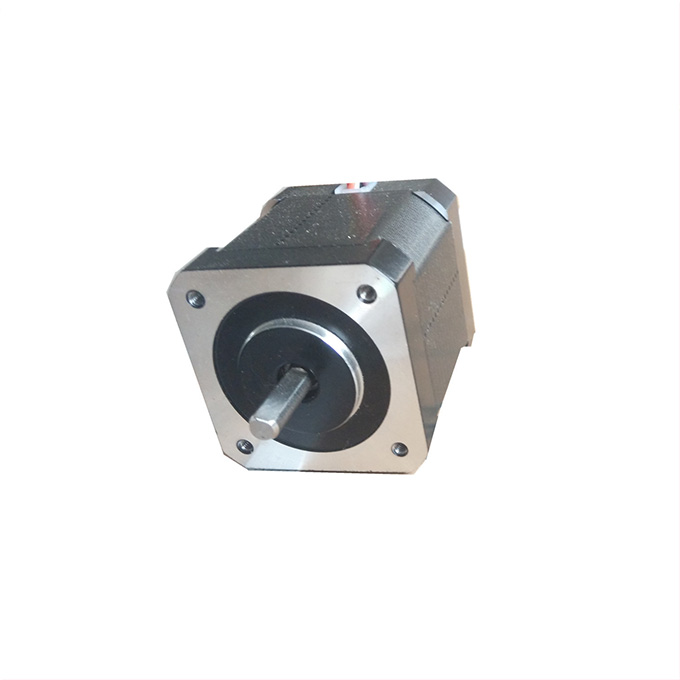

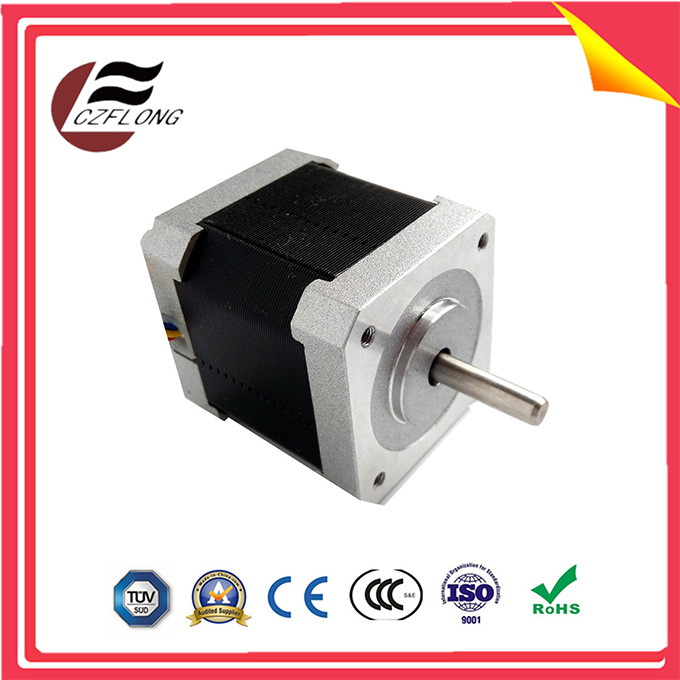

NEMA17 (42mm) Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA17 (42mm) Stepper motor
    • NEMA17 (42mm) Stepper motor


Series Model

Step Agel

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire

Rated Current (A)

Phase Resistance

Phase Inductance (MH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weigt (kg)

42BYGH2100A

0.9

26

1.2

4

0.8

7.9

7.5

21

140

0.17

42BYGH2100A-02

0.9

26

1.1

4

0.5

10.3

11.5

21

140

0.17

42BYGH2100A1A

0.9

30

2.9

4

0.8

14.6

22.1

26

160

0.19

42BYGH2100B

0.9

34.1

1.4

4

1

4.7

4.9

34

200

0.22

42BYGH2100B-01

0.9

34.1

2

4

1

7

9.6

34

200

0.22

42BYGH2100C

0.9

40.1

2.9

4

1

4.6

8.7

54

220

0.28

42BYGH2100C-01A

0.9

40.1

3.5

4

0.8

17.6

41

54

220

0.28

42BYGH4100C

0.9

40.1

2.5

6

0.4

30

30

54

220

0.28

42BYGH2100D

0.9

44

3.5

4

1

6.3

9.8

61

250

0.32

42BYGH250A

1.8

32

2.4

4

1.4

2.2

2.48

25

185

0.19

42BYGH450A

1.8

32

1.55

6

1

3.4

2.3

25

185

0.19

42BYGH250B

1.8

34

1.2

4

0.4

6

6.5

34

200

0.22

42BYGH250B-06

1.8

34

2.4

4

0.8

5.5

7.17

34

200

0.22

42BYGH450B-01

1.8

34

1.7

6

0.28

44

30

34

200

0.22

42BYGH450B-02

1.8

34

2

6

0.8

7.2

4.4

34

200

0.22

42BYGH250C

1.8

40

4

4

0.8

15.6

24.5

54

220

0.28

42BYGH250C-04

1.8

40

4.1

4

1.6

2.32

3.87

54

220

0.28

42BYGH250C-06

1.8

40

4.4

4

1

8.55

13

54

220

0.28

42BYGH250C-08

1.8

40

4

4

1

5.72

11.1

54

220

0.28

42BYGH450C

1.8

40

2.8

6

0.4

30

24

54

220

0.28

42BYGH450C-04

1.8

40

2.9

6

1

6

4.2

54

220

0.28

42BYGH450C-08

1.8

40

2.8

6

0.8

5.4

4.38

54

220

0.28

42BYGH250D01

1.8

44

5

4

1

5.2

8.6

61

250

0.32

42BYGH250D02

1.8

44

4

4

0.5

27

51

61

250

0.32

42BYGH250D08

1.8

44

2.2

4

1.5

0.68

0.85

61

250

0.32

42BYGH250D09

1.8

44

4

4

1.2

3.5

4.9

61

250

0.32

42BYGH450

1.8

44

3.2

6

0.5

18.5

18.5

61

250

0.32

42BYGH450D-20

1.8

44

3.4

6

1

5

5.4

61

250

0.32

42BYGH450D-21

1.8

46.5

4

6

0.8

8.9

8.5

68

270

0.33

42BYGH450D-22

1.8

46.5

3.9

6

1

7

5.6

68

270

0.33

42BYGH250E-06

1.8

48

4.1

4

0.8

6.35

8.9

68

280

0.35

42BYGH250E-07

1.8

48

4.1

4

0.8

6.35

8.9

68

280

0.35

42BYGH450E-01

1.8

48

3.8

6

0.4

32

27

68

280

0.35

42BYGH450E-14

1.8

48

3.7

6

0.8

7.5

6.4

68

280

0.35

42BYGH450E-17

1.8

48

4.7

6

1.2

5

4.75

68

280

0.35

42BYGH250F

1.8

60

5

4

0.5

23

35.7

102

370

0.46

42BYGH450F

1.8

60

4.9

6

0.5

24

25

102

370

0.46
