Home >> Products  >> Hybrid stepper motor  >> NEMA23(57mm) Stepper motor
Hybrid stepper motor

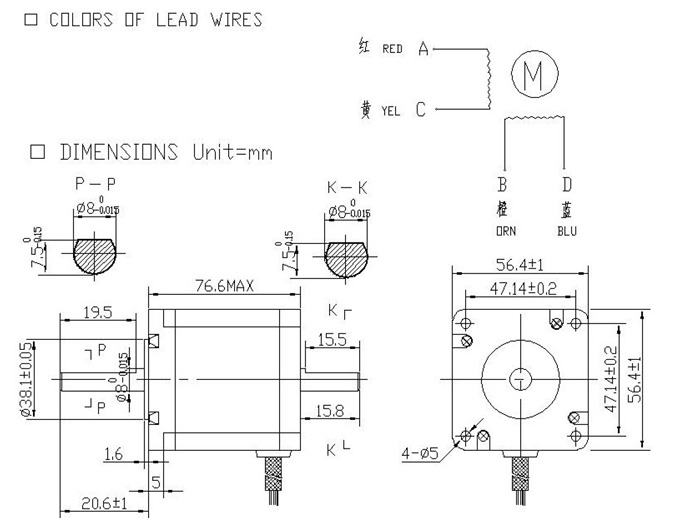

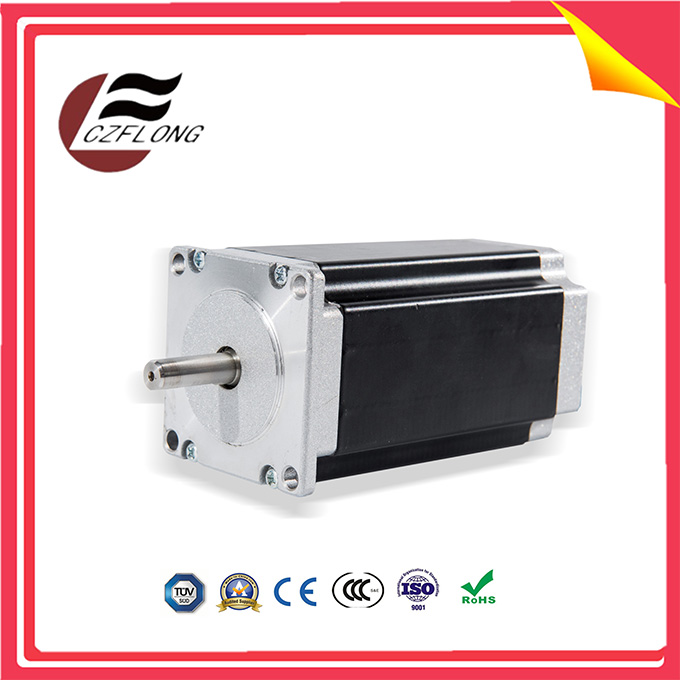

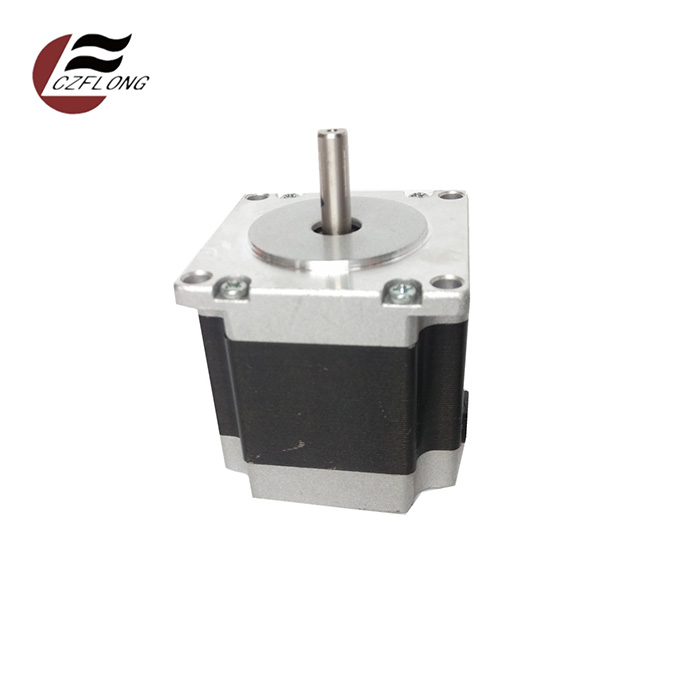

NEMA23(57mm) Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA23(57mm) Stepper motor
    • NEMA23(57mm) Stepper motor


Series Model

Step Angel

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire(NO)

Rated Current (A)

Phase Resistance(Ω)

Phase Inductance (MH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weight (kg)

57BYGH4100B

0.9

46

4.7

6

1

6.8

9.3

200

0.45

0.52

57BYGH2100E

0.9

76

15

4

2.4

1.95

8.5

480

0.9

1

57BYGH4100E-01

0.9

76

13.5

6

1.8

2.9

7

480

0.9

1

57BYGH250A-01

1.8

41

3.8

4

1.2

2.7

1.8

125

0.35

0.45

57BYGH250A-02

1.8

41

7.5

4

1.5

3.7

8

125

0.35

0.45

57BYGH250A-03

1.80.45

41

5.5

4

2.8

0.7

1.4

125

0.35

0.45

57BYGH250A-05

1.8

41

5.8

4

1

7.65

15

125

0.35

0.45

57BYGH250C

1.8

41

5.8

4

3

0.8

1.9

270

0.5

0.65

57BYGH250C-06

1.8

50

11

4

1.4

2.9

6.2

270

0.5

0.65

57BYGH250C-08A

1.8

50

12

4

1.5

4.2

10

270

0.5

0.65

57BYGH250C-08B

1.8

50

12

4

1.5

4.2

10

270

0.5

0.65

57BYGH450C-01

1.8

50

5.9

8

1.5

1.8

2.05

270

0.5

0.65

57BYGH450C-02

1.8

50

8.4

6

1.5

2.75

3.75

270

0.5

0.65

57BYGH250D

1.8

54

9.32

4

2

1.32

3.19

280

0.6

0.7

57BYGH250D-04

1.8

54

14

4

1.4

6.1

18.2

280

0.6

0.7

57BYGH250D-09

1.8

54

9.8

4

1

6.8

12.5

280

0.6

0.7

57BYGH450D-04A

1.8

54

9

6

1

7.95

11.9

280

0.6

0.7

57BYGH450D-05

1.8

54

9

6

2

1.6

2.2

280

0.6

0.7

57BYGH450D-08A

1.8

54

9

8

2.8

0.86

1.29

280

0.6

0.7

57BYGH250E

1.8

76

19

4

2.1

2.3

8.7

480

0.9

1

57BYGH250E-07

1.8

76

19.5

4

3

1.1

5.4

480

0.9

1

57BYGH250E-29

1.8

76

23

4

3

2.1

6.3

480

0.9

1

57BYGH450E-03

1.8

76

14.2

8

2.1

2

3.5

480

0.9

1

57BYGH450E-04

1.8

76

13.5

8

1.4

4.3

6.9

480

0.9

1

57BYGH450E-05

1.8

76

13

8

3

1

1.5

480

0.9

1

57BYGH450E1-02

1.8

80

19

6

4

1.06

1.84

510

1

1.06

57BYGH450E1-03

1.8

80

20

6

4

1.13

1.91

510

1

1.06

57BYGH250F

1.8

101

22

4

3

0.7

3.2

650

1.6

1.37

57BYGH250F-02

1.8

101

27.5

4

2.4

2.84

8.8

650

1.6

1.37

57BYGH250F-03

1.8

101

29

4

6

0.57

1.63

650

1.6

1.37

57BYGH450E-04

1.8

101

21

4

3

1.05

3.3

650

1.6

1.37

57BYGH450F

1.8

101

21

6

3

1.9

3.2

650

1.6

1.37

57BYGH250G

1.8

113

29

4

4

1.3

3.2

800

1.9

1.55

57BYGH250G-01

1.8

113

31

4

4

0.97

3.6

800

1.9

1.55

57BYGH450G

1.8

113

21.5

8

4.2

1

2.3

800

1.9

1.55

57BYGH450G-01

1.8

113

26

6

4

1

2.5

800

1.9

1.55

>
