Home >> Products  >> Hybrid stepper motor  >> NEMA34(86mm) Round Stepper motor
Hybrid stepper motor

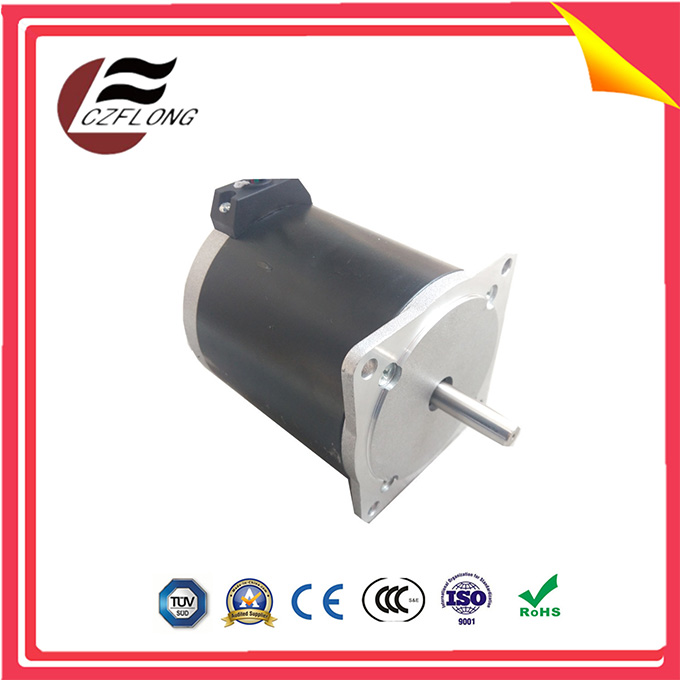

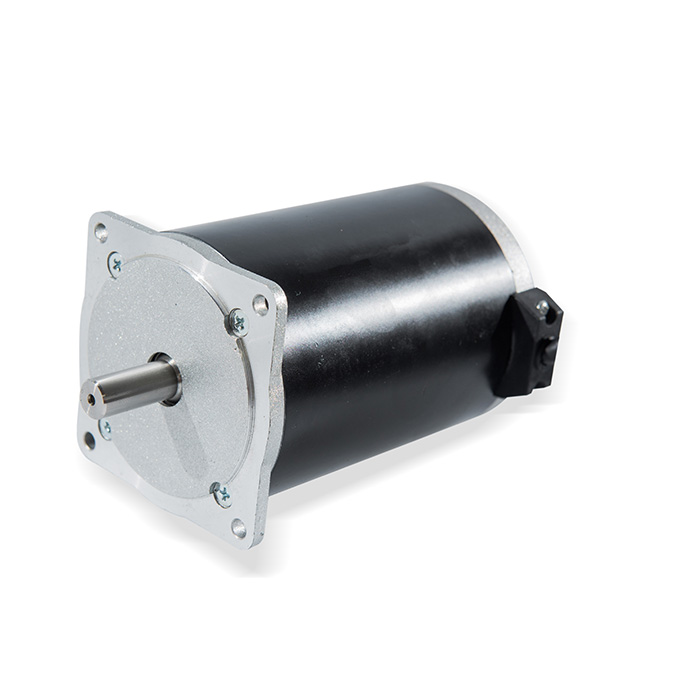

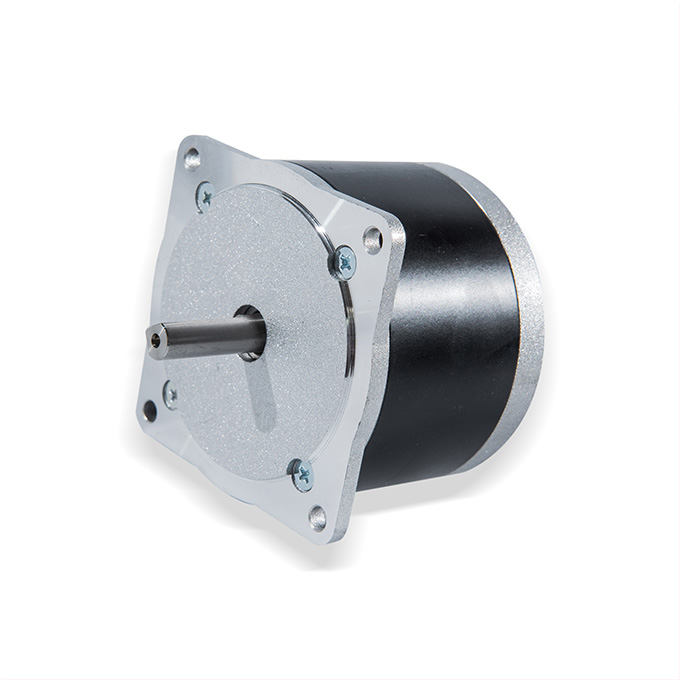

NEMA34(86mm) Round Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA34(86mm) Round Stepper motor
    • NEMA34(86mm) Round Stepper motor


Series Model

Step Angel（°)

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire(No)

Rated Current (A)

Phase Resistance(Ω)

Phase Inductance (mH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weight (kg)

86BYG250A-04

1.8

63

30.5

4

4

1.5

6.5

0.68

0.9

1.55

86BYG250A-05

1.8

63

26

4

4

1

3.2

0.68

0.9

1.55

86BYG250A-06

1.8

63

26.5

4

4

1.08

4.4

0.68

0.9

1.55

86BYG450A

1.8

63

20

6

3.05

1.4

3.74

0.68

0.9

1.55

86BYG450A-01

1.8

63

20

6

1.7

1.7

6

0.68

0.9

1.55

86BYG450A-03

1.8

63

17.5

8

3.6

0.6

1.7

0.68

0.9

1.55

86BYG450A-05

1.8

63

19

8

2

2.65

5.4

0.68

0.9

1.55

86BYG450HA

1.8

63

23

6

2

3.3

6

1.4

1.5

1.55

86BYG250B

1.8

95

42

4

3

1.6

9

1.3

1.6

2.61

86BYG250B-01

1.8

95

28

8

4

0.75

3.5

1.3

1.6

2.61

86BYG250B-04

1.8

95

46

8

5

0.72

2.85

1.3

1.6

2.61

86BYG250HB

1.8

95

93

4

4

3.8

20

2.9

2.5

2.61

86BYG250HB-01

1.8

95

61

4

5

0.73

3.4

2.9

2.5

2.61

86BYG250HC

1.8

127

97

4

5

0.7

3.8

4.6

3.5

3.6
