Hybrid stepper motor

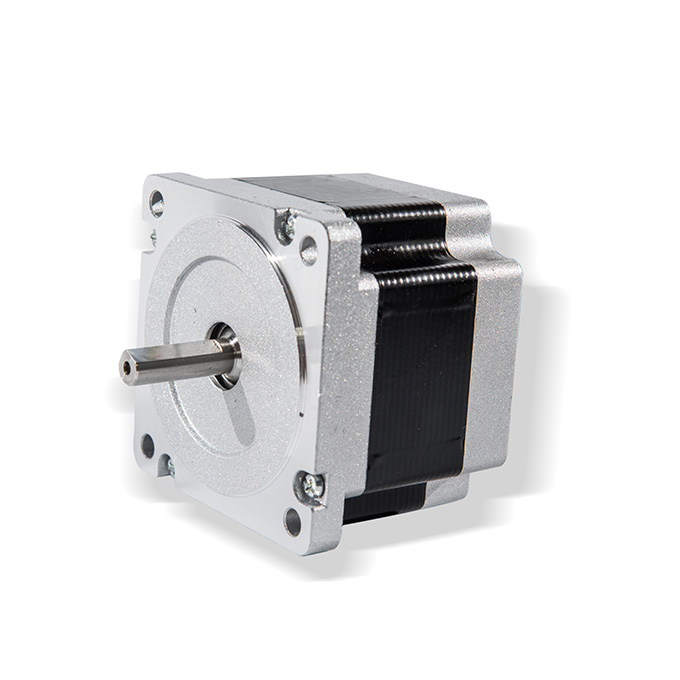

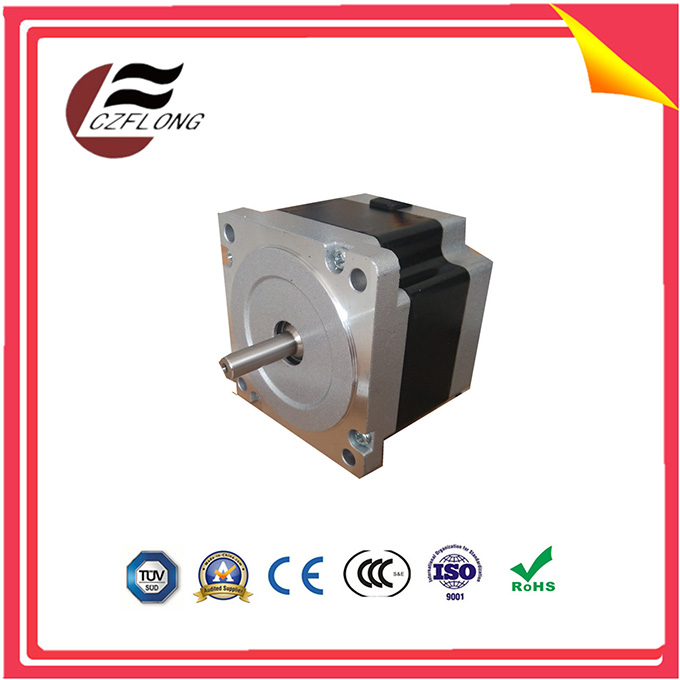

NEMA34(86mm) Stepper motor
CZFL offers full range stepper products including stepper drives, integrated stepper motors (motor + drive), and 2 ,3,5 phase hybrid stepper motors. Our stepper products are well known for high performance, reliable quality, and effective cost saving.
    • NEMA34(86mm) Stepper motor
    • NEMA34(86mm) Stepper motor


Series Model

Step Angel（°)

Motor Length(mm)

Holding Torque(Kg.cm)

Lead Wire(No)

Rated Current (A)

Phase Resistance(Ω)

Phase Inductance (mH)

Rotor Inertia(g.cm^2)

Detent Torque (g.cm)

Motor Weight (kg)

86BYGH250A-02

1.8

65

35

4

4

0.73

3.8

1.2

1.35

1.7

86BYGH250A-04

1.8

65

26

4

3

0.9

3.2

1.2

1.35

1.7

86BYGH250A-04A

1.8

65

26

4

3

0.9

3.2

1.2

1.35

1.7

86BYGH250A-04B

1.8

65

26

4

3

0.9

3.2

1.2

1.35

1.7

86BYGH250A-04C

1.8

65

26

4

3

0.9

3.2

1.2

1.35

1.7

86BYGH250A-04D

1.8

65

26

4

3

0.9

3.2

1.2

1.35

1.7

86BYGH250A-04E

1.8

65

26

4

3

0.9

3.2

1.2

1.35

1.7

86BYGH250A-05

1.8

65

35

4

4

0.84

4.2

1.2

1.35

1.7

86BYGH250A-06

1.8

65

26

4

3

0.6

2.5

1.2

1.35

1.7

86BYGH450A-01

1.8

65

25

6

3

1.25

3.2

1.2

1.35

1.7

86BYGH450A-03

1.8

65

25

8

3

1.25

3.2

1.2

1.35

1.7

86BYGH450A-04

1.8

65

27

8

4

0.7

1.86

1.2

1.35

1.7

86BYGH450A-05

1.8

65

20.5

6

2

1.57

4.12

1.2

1.35

1.7

86BYGH450A-05A

1.8

65

20.5

6

2

1.57

4.12

1.2

1.35

1.7

86BYGH450A-05B

1.8

65

20.5

6

2

1.57

4.12

1.2

1.35

1.7

86BYGH250B-01

1.8

77

53

4

6

0.4

3.07

1.7

1.89

2.2

86BYGH250B-03

1.8

77

59

4

4.2

1.54

11.5

1.7

1.89

2.2

86BYGH450B

1.8

77

40

8

4.2

0.75

3.5

1.7

1.89

2.2

86BYGH450B-01

1.8

77

37

6

3

1.5

5.4

1.7

1.89

2.2

86BYGH450B-04

1.8

77

40

8

4.2

0.75

3.5

1.7

1.89

2.2

86BYGH250D

1.8

96

55

4

4

0.41

3.4

2.7

2.1

3

86BYGH250E-01

1.8

114

87

4

6

0.44

3.9

3.5

2.75

3.6

86BYGH250E-02

1.8

114

110

4

5

1.18

11.1

3.5

2.75

3.6

86BYGH450E

1.8

114

74.5

6

4

1.3

6

3.5

2.75

3.6

86BYGH450E-03

1.8

114

74.5

8

4

1.3

6

3.5

2.75

3.6

86BYGH450E-04

1.8

114

79

6

4.5

1.18

5.9

3.5

2.75

3.6

86BYGH450E-06

1.8

114

57

6

4

1

3.74

3.5

2.75

3.6

86BYGH450F

1.8

128

106

4

4

1.6

7.7

1.9

2.5

3.8

86BYGH250H-02

1.8

156

134

4

5

0.75

8.1

4.9

4.2

5.4

86BYGH250H-03

1.8

156

137

4

5

1.27

10.6

4.9

4.2

5.4

86BYGH250H-04

1.8

156

135

4

5

0.85

8.7

4.9

4.2

5.4

86BYGH250H-06

1.8

156

118

4

6

0.47

5.2

4.9

4.2

5.4

86BYGH250H-07

1.8

156

150

4

4.2

2.76

29.8

4.9

4.2

5.4

86BYGH450H-02

1.8

156

125

8

5

1.26

7.1

4.9

4.2

5.4

86BYGH450H-03

1.8

156

118

8

6

0.47

5.2

4.9

4.2

5.4
